Digital Multimeter 9 Function Mini MultiMeter + Non-Contact Voltage Detector รุ่น EX310

ดิจิตอล มัลติมิเตอร์ Digital Multimeter 9 Function Mini MultiMeter + Non-Contact Voltage Detector ยี่ห้อ Extech, USA

รายละเอียด

ดิจิตอล มัลติมิเตอร์ : Digital Multimeter มัลติมิเตอร์  > เครื่องมือวัด Multimeter มัลติมิเตอร์ 9 Function Mini MultiMeter + Non-Contact Voltage Detector

EX310: 9 Function Mini MultiMeter + Non-Contact Voltage Detector ยี่ห้อ Extech, USA

Manual ranging DMM with NCV detector and battery test function

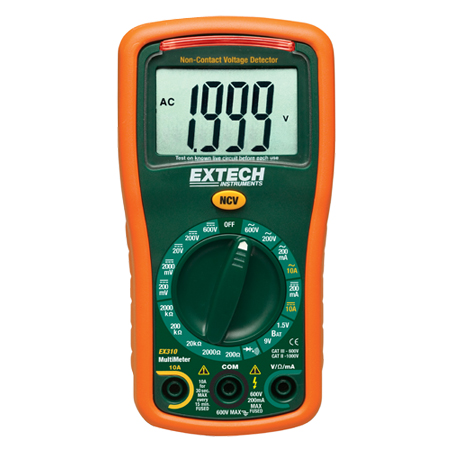

The EX310 is a compact manual ranging multi meter which features an extra-large 2000 count display and built-in non-contact AC voltage detector (NCV). AC/DC Voltage & Current, Resistance, Diode/Continuity measurements. Includes battery test function (1.5 Volt and 9 Volt). Rubber holster protects the meter. UL listed Cat III – 600 Volt safety rating. Includes test leads, 9 Volt battery and tilt stand.

Features:

  • Manual ranging DMM with 9 functions and 0.5% basic accuracy
  • AC/DC Voltage & Current, Resistance, Diode/Continuity
  • Built-in non-contact AC voltage detector (NCV) with red LED indicator and audible beeper
  • Battery test function for 1.5V and 9V batteries
  • Large-digit 2,000 count LCD display
  • 10A max Current
  • Low battery indicator
  • Complete with test leads, tilt stand, protective holster and 9V battery
For complete specs please download the product datasheet (not available for some accessories)
Specifications:

Comparisons:
Extech EX300 Series
Digital Multimeter 9 Function Mini MultiMeter + Non-Contact Voltage Detector รุ่น EX310
รุ่น EX310
Digital Multimeter 8 Function Mini MultiMeter + Non-Contact Voltage Detector รุ่น EX320
รุ่น EX320
Digital Multimeter 12 Function Mini MultiMeter + Non-Contact Voltage Detector รุ่น EX330
รุ่น EX330
Unit Range Range Range
 Display Counts 2000 2000 4000
 Basic DCV Accuracy ±0.5% ±0.5% ±0.5%
 NCV Detector
100 to 600VAC
   100 to 600VAC   100 to 600VAC
 DC Voltage 0.1mV to 600V 0.1mV to 600V 0.1mV to 600V
 AC Voltage 0.1V to 600V 0.1mV to 600V 0.1mV to 600V
 DC/AC Current 0.1mA to 10A 0.1µA to 10A 0.1µA to 10A
 Resistance 0.1Ω to 2000kΩ 0.1Ω to 20MΩ 0.1Ω to 40MΩ
 Capacitance 0.001nF to 200µF
 Frequency 0.001Hz to 10MHz
 Temperature (Type K) -4 to 1382°F (-20 to 750°C)
 Duty Cycle 0.1 to 99.9%
 Diode/Continuity Yes Yes Yes
 Dimensions 5.7×2.9×1.6″ (147x76X42mm) 5.7×2.9×1.6″ (147x76X42mm) 5.7×2.9×1.6″ (147x76X42mm)
 Weight 9oz (260g) 9oz (260g) 9oz (260g)
Model Feature:
EX310: EX320: EX330:
Mini MultiMeter + Voltage Detector Mini Autoranging MultiMeter + Voltage Detector Mini Autoranging MultiMeter
with Temp + Voltage Detector
 • Manual ranging  • Autoranging
 • Max Hold: captures highest reading
 • Data Hold: freezes the display
 • Auto Power Off: conserves battery life
 • Autoranging
 • Data Hold: freezes the display
Auto Power Off: conserves battery life
Type K Temperature °F/°C switchable
Capacitance
Frequency
Relative function
Built-in Non-Contact Voltage Detector automatically detects a live wire when the red LED is lit with audible beeper
 Built-in Non-Contact Voltage Detector automatically
 detects a live wire when the red LED is lit with audible beeper
CE UL NIST CATII 1000V CATIII 600V waranty12
Ordering Infioramation:
EX310……………….Mini MultiMeter + Voltage Detector
EX310-NIST………EX310 MultiMeter With Calibration Traceable to NIST
EX320……………….Mini Autoranging MultiMeter + Voltage Detector
EX320-NIST………EX320 MultiMeter With Calibration Traceable to NIST
EX330……………….Mini Autoranging MultiMeter with Temp + Voltage Detector
EX330-NIST………EX330 MultiMeter With Calibration Traceable to NIST
