มัลติมิเตอร์ True RMS Digital Multimeter รุ่น EX205T

฿1,500.00

เครื่องมือวัด DMM Digital multimeter มัลติมิเตอร์ True RMS, AC/DC Voltage 600V, AC/DC Current 10A ยี่ห้อ Extech, USA

รหัสสินค้า: EXTECH EX205T หมวดหมู่:

รายละเอียด

เครื่องมือวัด DMM : Digital multimeter มัลติมิเตอร์  > เครื่องมือวัด True RMS Digital Multimeter มัลติมิเตอร์

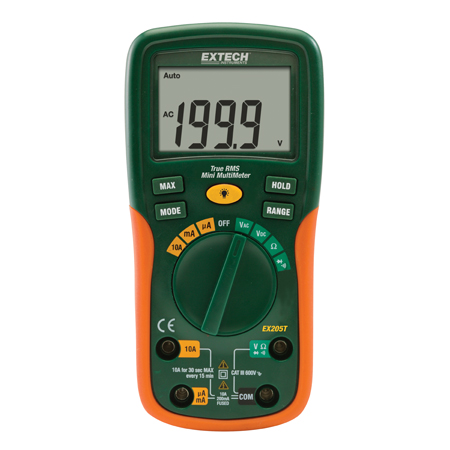

EX205T : TrueRMS Digital Multimeter ยี่ห้อ Extech, USA

Autoranging Multimeter with 2000 Count Large LCD Display

The Extech EX205T is a True RMS digital multimeter, which provides truer AC readings when measuring distorted or non-sinusoidal waveforms and noisy signals. This model is also auto ranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Featuring a large 2000-count, backlit dual LCD with easy-to-read digits, this multimeter measures: AC/DC Voltage, Resistance, Diode Test and Continuity. The meter also makes use of a number of functions including input fuse protection, max hold, auto power off and data hold function. Product has a CAT III-600 Volt safety rating and includes test leads, 9V battery, and user manual.
Features:
  • True RMS for better accuracy when measuring distorted waveforms
  • 2000 count large backlit dual LCD with easy-to read digits
  • Low current capability with resolution to 0.1µA
  • Input fuse protection
  • Max Hold, Data Hold and Auto power off
  • Complete with test leads and 9V battery
For complete specs please download the product datasheet (not available for some accessories)
Specifications:
Comparisons
Extech EX2xxT Series
Digital Multimeter True RMS Digital Multimeter รุ่น EX205T
รุ่น EX205T
Digital Multimeter Mini Digital MultiMeter with IR Thermometer รุ่น EX210
รุ่น EX210
Digital Multimeter TrueRMS Digital Multimeter with IR Thermometer รุ่น EX210T
รุ่น EX210T
 Unit Range (Max Resolution) Range (Max Resolution) Range (Max Resolution)
 True RMS Yes Yes
 AC Voltage 600V (0.1mV) 600V (0.1mV) 600V (0.1mV)
 DC Voltage 600V (0.1mV) 600V (0.1mV) 600V (0.1mV)
 Basic Accuracy (VDC) ±0.5% ±0.5% ±0.5%
 AC Current 10A (0.1μA) 10A (0.1μA) 10A (0.1μA)
 DC Current 10A (0.1μA) 10A (0.1μA) 10A (0.1μA)
 Resistance 20MΩ (0.1Ω) 10A (0.1μA) 10A (0.1μA)
 IR Temperature -20 to 230°C (-5 to 446°F) -20 to 230°C (-5 to 446°F)
 Continuity / Diode Yes Yes Yes
 Dimensions  5.8×2.9×1.6″ (147x76x42mm)  5.8×2.9×1.6″ (147x76x42mm)  5.8×2.9×1.6″ (147x76x42mm)
 Weight 9.17oz (260g) 9.17oz (260g) 9.17oz (260g)
ดิจิตอล มัลติมิเตอร์ Digital Multimeter - True RMS Digital Multimeter   Both models are autoranging True RMS
meters providing a more accurate

  reading when measuring distorted
waveforms. EX210T with built-in
  IR Thermometer allows for quick non-contact
  Temperature measurements

CE ETL NIST  CAT III 600V

Ordering Infioramation:
EX205T ………….. True RMS Autoranging MultiMeter
EX205T-NIST …… EX205T with Certifi cate of Calibration Traceable to NIST
EX210 ……………. Autoranging MultiMeter + IR Thermometer
EX210-NIST……… EX210 with Calibration Traceable to NIST
EX210T ………….. True RMS Autoranging MultiMeter + IR Thermometer
EX210T-NIST …… EX210T with Certifi cate of Calibration Traceable to NIST

หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า


measuring instruments  Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
