Description

Power Monitor สำหรับตรวจวัดค่าแรงดัน, กระแส, และความจุของแบตเตอรี่สำรองสำหรับมือถือ หรืออุปกรณ์ที่รองรับ USB

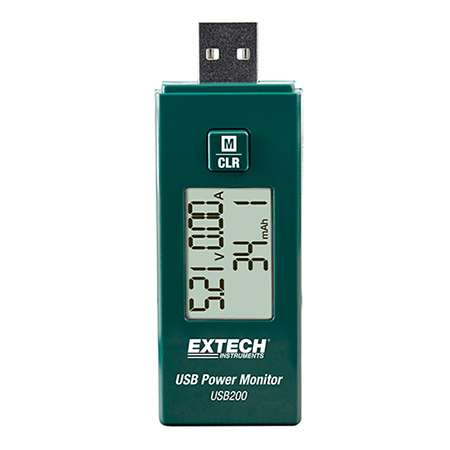

USB200: USB Power Monitor ยี่ห้อ Extech, USA

Monitor Voltage, Current, and Charge Capacity (mAh) in Chargers and Power Banks

The Extech’s USB200 monitors voltage, current, and charge capacity (mAh) to determine the quality and stability of chargers, power banks, and cables. It’s designed with a standard USB-A connector to plug into a device to be measured. It also has a USB input to test the quality of charging cables by observing the displayed current. The USB Power Monitor measures the output voltage, current, capacity and stability to prolong the charging equipment’s life cycle and memory stores up to 10 readings. Includes protective USB plug cover for storage.

Features:

Test the output voltage, current, capacity and stability to prolong the charging equipment’s life cycle
Test the quality of charging cable
10 storage bank locations
Lightweight, ergonomic design with USB-A connector
Complete with internal battery and USB plug cover for storage

For complete specs please download the product datasheet (not available for some accessories)

Specifications:

Specifications	Range
Input Voltage	3.0 to 9.0VDC
Load Current	0 to 3ADC
Memory Charge Capacity	0 to 9999mAh
Memory	10 sets
Dimensions	3.3 x 1.2 x 0.5″ (84.1 x 29.1 x 12.3mm)
Weight	0.8oz (22.7g)

The Extech’s USB200 monitors voltage, current, and charge
capacity (mAh) to determine the quality and stability of chargers,
power banks, and cables. It’s designed with a standard USB-A
connector to plug into a device to be measured. It also has a
USB input to test the quality of charging cables by observing the
displayed current. The USB Power Monitor measures the output
voltage, current, capacity and stability to prolong the charging
equipment’s life cycle and memory stores up to 10 readings.
Includes protective USB plug cover for storage.

*Compatible Devices:
– Smart Phones
– Tablets
– MP3/MP4 Play
– Digital Cameras
– GPS
– Other portable USB-charging devices

Accessories:

• Complete with internal battery and USB plug cover for storage
