Description
เครื่องวัดรังสี รุ่น Inspector Alert™ V2 แบรนด์ IMI Digital Radiation Meter > ตรวจวัดการรั่วไหลของธาตุกัมมันตรังสี, รังสีแอลฟา, รังสีบีตา, รังสีแกมมา (gamma, beta or X-rays)
Inspector Alert™ V2 : เครื่องวัดรังสี Radiation Detector แบรนด์ IMI, MADE IN USA
เครื่องวัดรังสี รุ่น Inspector Alert™ V2 แบรนด์ IMI Radiation Detector ตรวจวัด รังสี X-ray, รังสีเบตา Beta(B) และรังสีแกมมา Gamma(y)
Radiation Detector
เครื่องตรวจวัดรังสี รุ่น Inspector Alert™ V2 แบรนด์ IMI
Radiation Detector
IMI Inspector Alert ™ V2 เครื่องวัดค่ารังสีแอลฟ่า, เบต้า, แกมม่า และรังสี X ใช้เครื่องตรวจจับ GM แบบ “pancake” ขนาด 2 นิ้วที่มีความไวสูงต่อรังสีเบต้าและอัลฟ่า หน้าจอดิจิตอลอ่านค่าได้ง่าย ทั้งหน่วย μSv / hr, mR / hr, CPM หรือ CPS สามารถตรวจวัดการปนเปื้อนในระดับต่ำ เสียงเตือนจะดังขึ้นเมื่อรังสีถึงระดับที่ผู้ใช้ตั้งค่าไว้
- แจ้งเตือนผู้ใช้ถึงระดับรังสีที่เป็นอันตราย
- ช่วยเพิ่มความปลอดภัยในห้องปฏิบัติการและภาคสนาม
- Automatically compensates for GM tube dead time
- Will not jam in high radiation fields
- ได้มาตราฐานการรับรอง CE Certified, RoHS Compliant & Meets WEEE standards
ตรวจจับ | Halogen-quenched Geiger-Mueller tube Effective ขนาด 1.75 นิ้ว (45 มม.) ความหนาแน่น Mica 1.5-2.0 มิลลิกรัม/ตารางเซนติเมตร ตรวจวัดรังสีอัลฟ่า, เบต้า, แกมมา และรังสีเอ็กซ์ |
||||||||||||||||||
จอแสดงผล | 4-digit liquid crystal display with mode indicators | ||||||||||||||||||
ช่วงการวัด | µSv/hr: .01 – 1,100 mR/hr: .001 – 110 CPM: 0-350,000 CPS: 0 – 5,000 Total: 1 – 9,999,000 counts |
||||||||||||||||||
สอบเทียบ | Cesium-137 (gamma) | ||||||||||||||||||
ความไวของรังสีแกมมา | 3500 CPM/mR/hr referenced to Cs-137 Smallest detectable level for 1-125 is .02 mCi at contact |
||||||||||||||||||
Efficiency:
|
For 4 pi at contact :
|
||||||||||||||||||
ความแม่นยำ | ±10% typical;±15% maximum | ||||||||||||||||||
ช่วงการแจ้งเตือน | µSv/hr: 0 ถึง 500 mR/hr: 0 ถึง 50 CPM: 0 ถึง 160,000 Beeper sounds the alert |
||||||||||||||||||
การเตือน | Can set sampling periods of 1 minute to 40 hours | ||||||||||||||||||
ระยะเวลาเฉลี่ย | Display updates every 3 seconds, showing the average for the past 30-second time period at normal levels The averaging period decreases as the radiation level increases |
||||||||||||||||||
แสง | Red LED flashes with each count | ||||||||||||||||||
เสียง | Beeper chirps for each count (can be muted) | ||||||||||||||||||
พอร์ต | • Output: Stereo 3.5mm jack sends counts to computers, data loggers, other CMOS-compatible devices, earphones, and educational data collection systems. 0-9 V, 1 kOhm impedance. • Input: 2.5 mm monojack provides calibration input. 0-3.3 V,> 5µs width, rising edge triggered |
||||||||||||||||||
Anti-Saturation | Readout holds at full scale in fields up to 100 times the maximum reading | ||||||||||||||||||
ช่วงการวัดอุณหภูมิ | -20° ถึง +50° c,-4° ถึง +122° F | ||||||||||||||||||
พลังงาน | One 9-volt alkaline battery; battery life 2000 hours typical, 700 hours minimum at normal background radiation levels at sea level Battery life decreases as radiation level rises |
||||||||||||||||||
ขนาด | 150 x 80 x 30 มม. (5.9 x 3.2 x 1.2 นิ้ว) | ||||||||||||||||||
น้ำหนัก | 323 กรัม (11.4 ออนซ์) รวมแบตเตอรี่ | ||||||||||||||||||
อุปกรณ์เสริม | ซอฟ์ตแวร์และสายเคเบิ้ล | ||||||||||||||||||
การรับรอง | CE Certified Emissions: EN55011:98+A2 (Class B emissions limits); EN61326:06 (ClassB) RF Emissions Immunity: EN61326:06 (AnnexC) Portable Test and Measurement Equipment; EN61000-4-2: 95 (ESD); EN61000-4-3:97 RoHS Compliant; Meets WEEE standards |
Product Description
Product Description

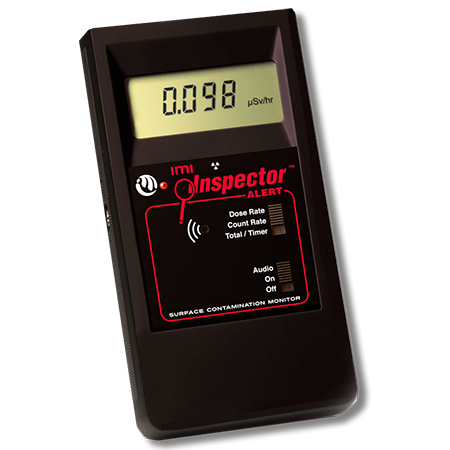

IMI Inspector Alert™ V2
The IMI Inspector Alert™ V2 measures alpha, beta, gamma and x-radiation using a 2-inch “pancake” GM detector with high sensitivity to common beta and alpha sources. The easy-to-read digital display shows readings in your choice of µSv/hr, mR/hr, CPM, or CPS. The Total/Timer feature allows timed readings from one minute to 40 hours for precise measurement of low level contamination. An audible alert sounds when the radiation reaches a user-adjustable level.
- Quickly alerts the user to the presence of harmful levels of nuclear radiation
- Improves safety in the laboratory and in the field
- Automatically compensates for GM tube dead time
- Will not jam in high radiation fields
- CE Certified, RoHS Compliant & Meets WEEE standards
Specifications:
